Optic Fiber Horizontal Type Optical FTTH Splice Closure For FTTx ISO Certified Supply

Model Number : Optical FTTH Splice Closure

Type : Optical FTTH Splice Closure

Place of Origin : Zhejiang, China

Brand Name : OEM

Use : Fiber optic manufacture

Warranty Time : 1 year

Wiring Devices : ODF

Certification : CE, ISO, RoHS, GS FTTH Splice Closure

Material : PC+ABS Optical FTTH Splice Closure

Dimensions : 320*240*100mm Optical FTTH Splice Closure

Temperature : -40℃~+85℃ FTTH Splice Closure

Max Capacity : 24 Optical FTTH Splice Closure

Installation Size : 190mm*298mm Optical FTTH Splice Closure

Into the largest cable diameter : 15mm Optical FTTH Splice Closure

Cable ways : Not cup-joint / cup-joint OpticalFTTH Splice Closure

Packaging Details : FTTH Splice Closure/Carton Box

Port : FTTH Splice Closure from Ningbo

MOQ : 500 pieces

Price : $5.00/pieces 500-1999 pieces

Contact Now

Products Description

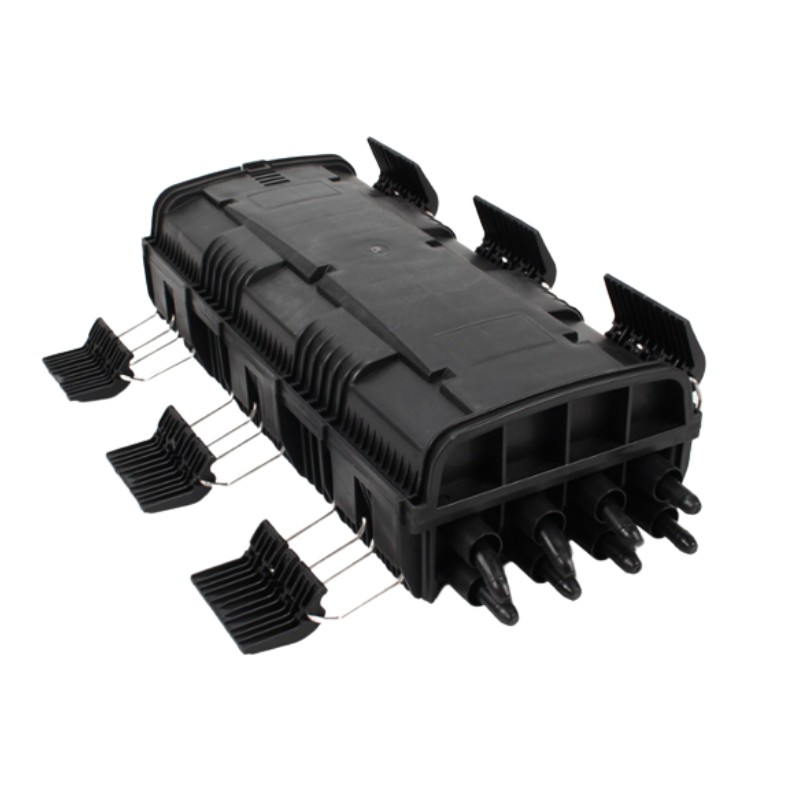

The Optical Splice Closure is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

Specification

Optic Fiber Horizontal Type Optical FTTH Splice Closure For FTTx ISO Certified Supply

FTTH Splice Closure Application:

· Data transmission

· Telecommunication

· Testing equipment

· WBN

· optical fiber CATV

· LAN indoor/outdoor

FTTH Splice Closure FEATURE

1、Total enclosed structure. 2、Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP55. 3、Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one. 4、Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance. 5、Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation. 6、Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Details Images

1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?

Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
Box, except that, we have very good prices for part of the fiber tools!

4. How can we place order?

After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
(deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
costs!

5. What is the quality of your product?

All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?

Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?

1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?

1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?

1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you
